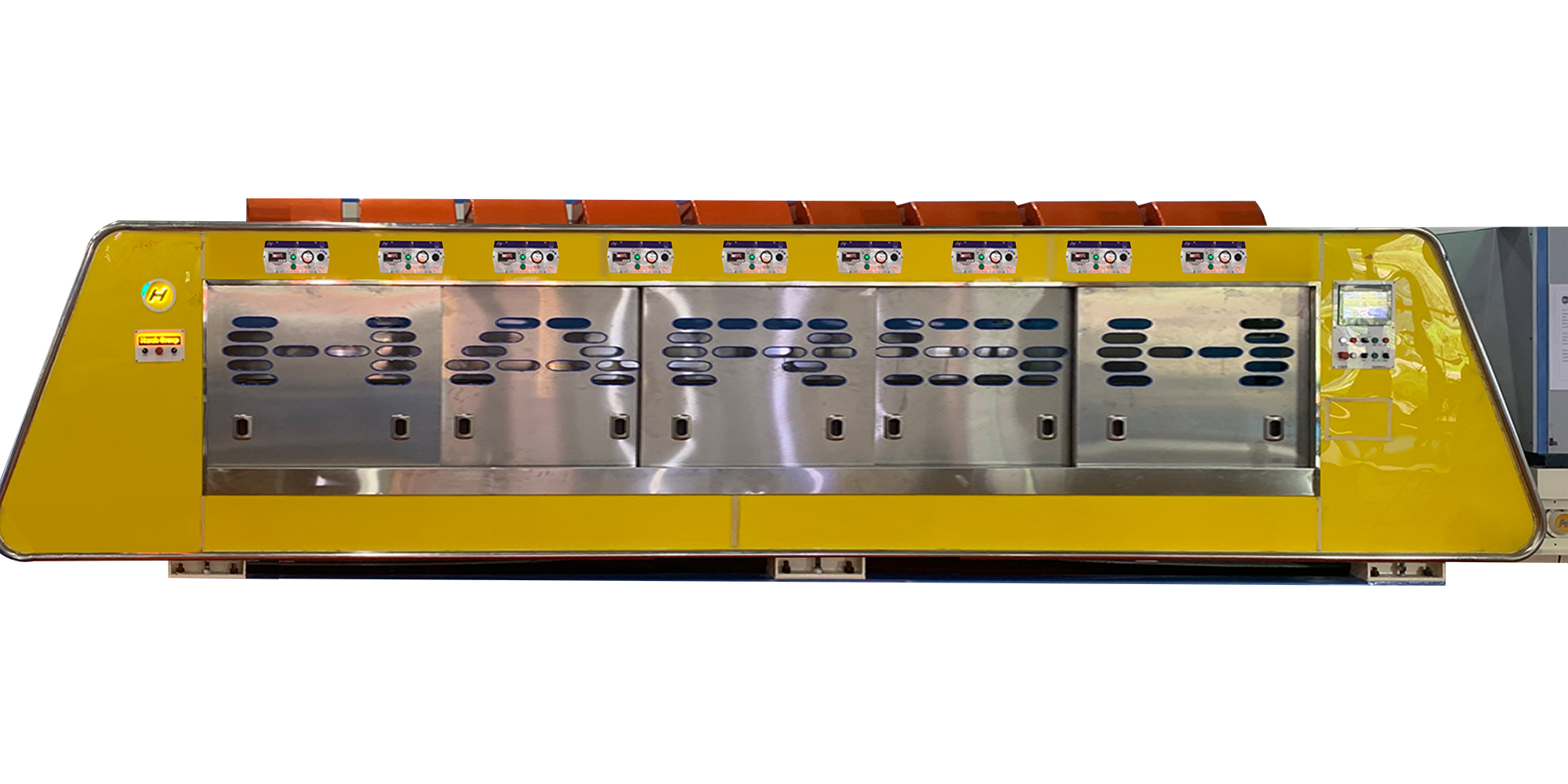

Introducing our ProMassimo 9 Heads Line Polishing Machine ‘HLx9ProMassimo’, a high-performance solution designed for precision and mirror finish polishing of marble, granite, and other stone slabs on a single polishing line. This robust machine is equipped with 9 polishing heads that deliver consistent, uniform results, ensuring a flawless finish on large production runs with lesser electricity consumptions.
Specialisation:
§ Hydraulic loading trolley with cross movement.
§ Edge trimming machine.
§ Slab feeding table with width adjustment and straitening system.
§ Double blower assembly for faster slab drying.
§ Polished slab receiving table.
§ Hydraulic unloading trolley with cross movement.
§ Slab wrapping system.
|
HLx16 ProMassimo |
HLx12 ProMassimo |
HLx9 ProMassimo |
HLx6 ProMassimo |
ProMassimo Series * |
YES |
YES |
YES |
YES |
Granite Polishing (HLx.. G) |
|
|
|
|
Marble Polishing (HLx.. M) |
|
|
|
|
Sandstone Polishing (HLx.. S) |
|
|
|
|
Optimised fragmented-slab-ends polish RTNT system * |
|
|
|
|
Total Spindles |
16 |
12 |
9 |
6 |
Roughing spindles * |
4 |
3 |
1 |
1 |
Finishing spindles |
12 |
9 |
8 |
5 |

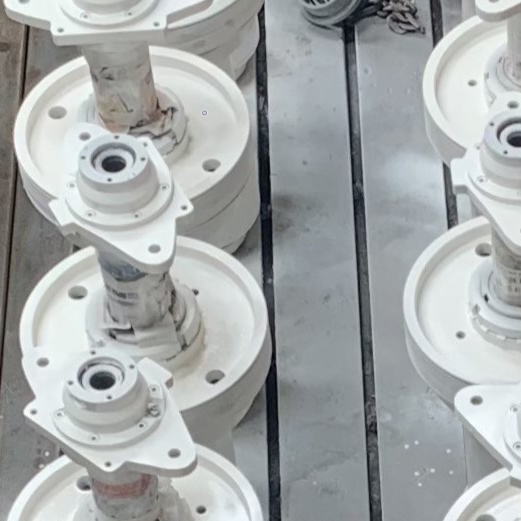

Polishing Heads |
Harsh Group is the only manufacturer in India who makes machines and makes all heads IN-HOUSE facilities. |
|||
16 |
12 |
9 |
6 |
|

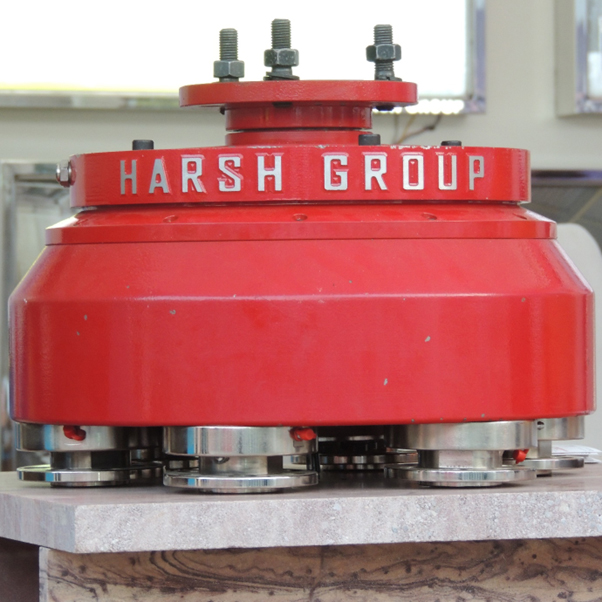

VERHEXEN-SATELLITE Heads (reD) * |
2 |
2 |
1 |
1 |

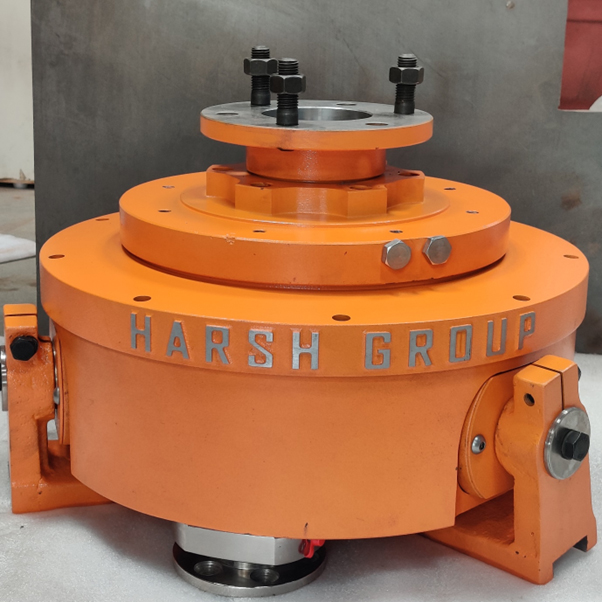

TRI-SATELLITE Heads (orangE) * |
2 |
1 |
0 |
0 |

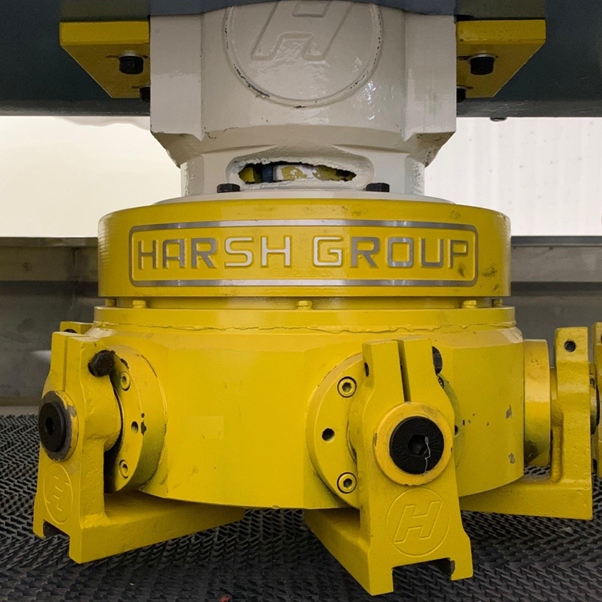

YB6-II Heads (yelloW) |
12 |
9 |
8 |
5 |
Various head drive power (HP) |
15 & 12.5 |
15 & 12.5 |
15 & 12.5 |
15 & 12.5 |
Bridge movement * |

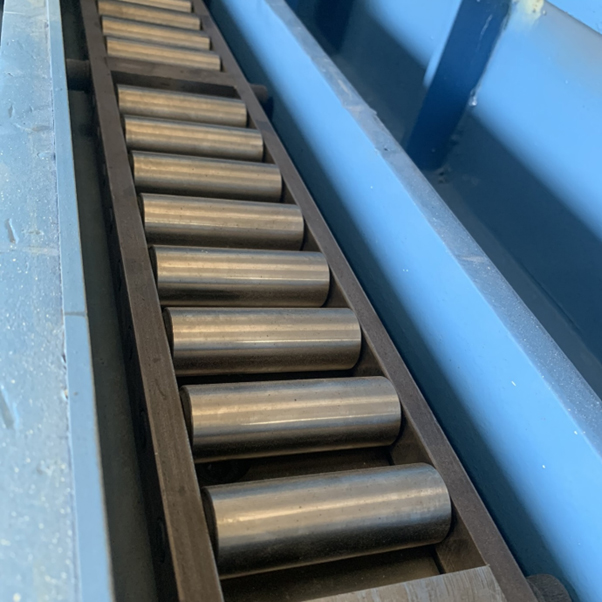

Precision gang rollers with I.R. bearing track |
Precision gang rollers with I.R. bearing track |
Precision gang rollers with I.R. bearing track |
Precision gang rollers with I.R. bearing track |
Bridge real time positioning |
Synchronous BD system |
Synchronous BD system |
Synchronous BD system |
Synchronous BD system |
Almost zero backless belt drive |
SP. Planetary gearboxes |
SP. Planetary gearboxes |
SP. Planetary gearboxes |
SP. Planetary gearboxes |

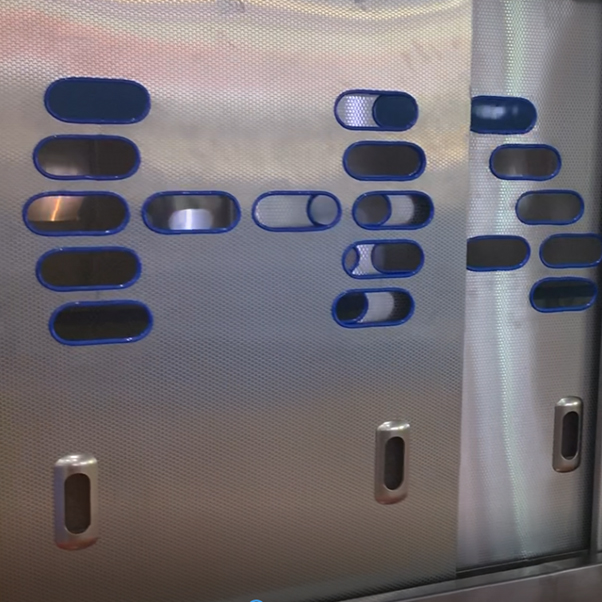

Slab viewing doors |
Honeycomb mat SS |
Honeycomb mat SS |
Honeycomb mat SS |
Honeycomb mat SS |
Protection class |
GUI Screen (IP65) |
GUI Screen (IP65) |
GUI Screen (IP65) |
GUI Screen (IP65) |
System health monitoring |
|
|
|
|
Abrasive wear alarm system |
|
|
|
|
Max. workable width |
2200/1250 mm |
2200/1250 mm |
1250 mm |
1250 mm |
Min. workable thickness |
18 mm |
18 mm |
18 mm |
18 mm |
Standard workable thickness |
40 mm |
40 mm |
30 mm |
30 mm |
